QUINT-PS-100-240AC/24DC/40
12
13

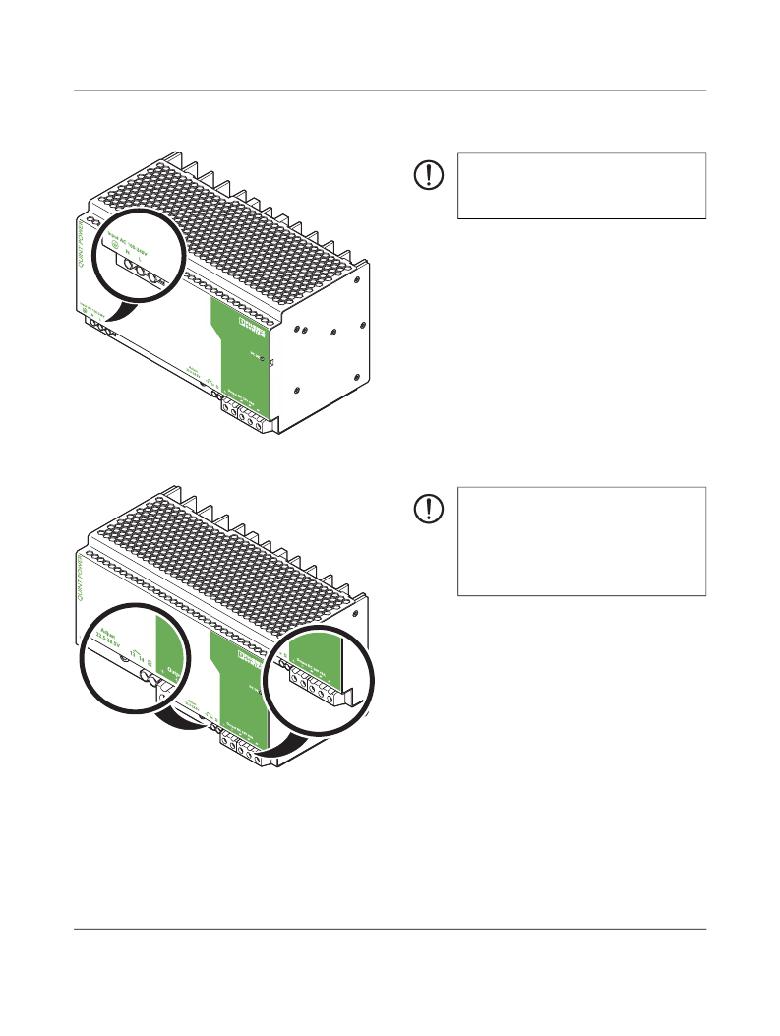

Input
Output
CAUTION
If an internal fuse is triggered, there is a device
malfunction. In this case, the device must be
inspected in the factory.
Protection of the primary side
The device must be installed in acc. with the regulations as in
EN 60950. It must be possible to disconnect the device using
a suitable isolating facility outside the power supply.
The primary side line protection, for example, is suitable. For
device protection, there is an internal fuse. Additional device
protection is not necessary.
Permissible backup fuse for mains protection
Power circuit-breaker 16 A or 25 A, characteristic B (or
identical function). In DC applications, a suitable backup fuse
must be wired in!
ATTENTION
Make sure that all output lines are dimensioned
according to the maximum output current or are
separately protected. The cables on the
secondary side must have sufficiently large
cross sections in order to keep the voltage
drops on the lines as low as possible.
The connection is established via the screw connections on
the screw connection of the DC output:
24 V DC: "+" and "–"; DC OK switching output active: "DC OK"
and "–"; DC OK output floating: "13" and "14".
The output voltage set upon delivery is 24 V DC. The output
voltage can be set on the potentiometer.
Protection of the secondary side
The device is electronically protected against short-circuit
and idling. In the event of a malfunction, the output voltage is
limited to 35 V DC. Make sure that all output lines are
dimensioned according to the maximum output current or are
separately protected! The cables on the secondary side
should have large cross sections in order to keep the voltage
drops on the lines as low as possible.
102315_en_02
